Refrigerated Circulating Bath SH-WB-22CDR

-20℃~150℃

22(Liter)

  • Excellent temperature accuracy by Digital Control
  • Circulation Motor allows excellent temperature distribution

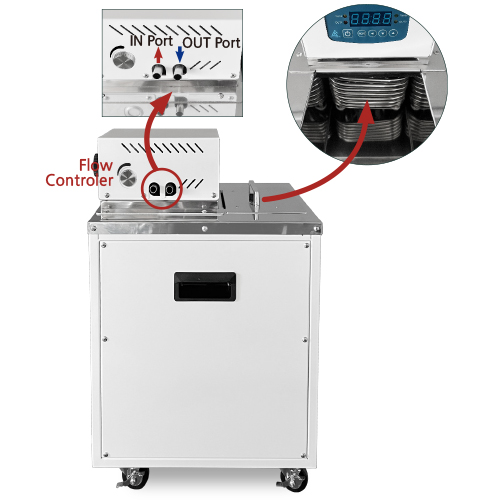

  • External circulation port (possible to connect with an external device)
  • Stainless Steel internal bath
  • Safety assurance with C.E. conformity
저온순환항온수조 6.8L
  • Specification

  • Inquiry

    • • Accessory
    • -Bath Lid
      • Option
    • -RS-485 interface
    • -RS-232C interface
    • -1/2" Pt Female connector
      • Safety Device
    • -Automatic reset function incoming power cut
    • -Buzzer on when set time arrived
    • -Electric leakage circuit breaker
    • -Over temperature alarm
    • -Refrigerator over load protection
    • -High temp limit controller
    Recirculating pump curve

    A Refrigerated Circulating Bath is a version of the General Purpose Water Bath that comes with a cooling function.
    It is used in keeping materials cooled over a certain set period. This application can be actualized in cooking, scientific researches and other related industries.





    Uniformity sheet
    저온순환항온수조 온도분포도
    Feature
    저온순환항온수조 특징 및 장점
  • 제품명 저온순환항온수조 22L Circulating Water Bath
    Model SH-WB-22CDR
    Temp Range Ambient   -   40℃ to 150℃ (Low Limit -20℃)  (Cooling and Heating)
    Ambient -64℉ to 302℉
    Temp Controller Microprocessor membrane Digital PID Controller
    Time Range 00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Counter
    Capa 22L
    Recirculating
    Pump
    Flow Control 2 ~ 16 L/min (tested with clean water at 20℃)
    Max Head
    3.5 meter (tested with clean water at 20℃)
    Max pressure 5.1 psig (tested with clean water at 20℃)

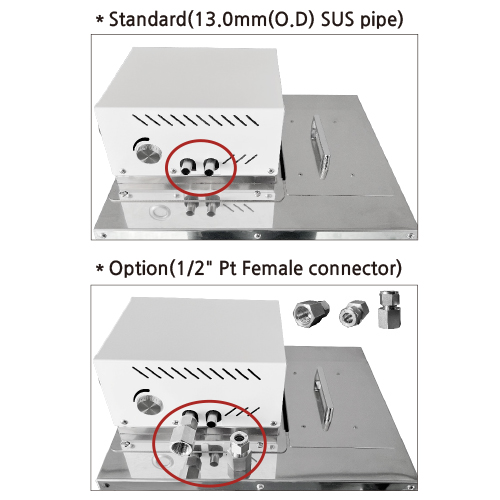

    In/out port 13.0 mm (O.D) / Stainless Steel pipe or 1/2" Pt Female connector (*option)
    Heater Capa 2.2 KW
    Dimension Internal
    (W×D×H )
    350x420x150mm
    13.78x16.54x5.90''
    Dimension External
    (W×D×H )
    540x520x700mm
    21.26x20.47x27.55''
    Top Open
    (W×D)
    350x235mm
    13.78x9.25''
    Net weight 73 Kg
    Material Internal Stainless Steel
    Material External Steel Plate With Powder Heating Coated
    Noise (dB)
    48
    Electrical Requirements
    230V ,50Hz, 1Φ
    9.6 A
    Cat. No. WB22CDR230-50
    Electrical Requirements
    230V ,60Hz, 1Φ
    9.6 A
    Cat. No. WB22CDR230-60
