SH Vacuum Drying Oven SH-VDO-08NG

Vacuum Drying Oven

SH-VDO-08NG

  • Separated vacuum port and vent port
  • Du-aluminium Shelves(Excellent heat conductivity)
  • Internal observation is possible through View Window
  • Excellent temperature uniformity and accuracy
  • Stainless Steel Internal Chamber with shelves
  • Safety assurance with C.E conformity

We recommend adding our add that product

PRODUCT Option

  • Specification

  • Inquiry

  • Vacuum Drying Oven-Feature

    A Vacuum Drying Oven is used for drying at low temperatures by lowering the pressure. In addition, this unit dries samples without causing residues, scaling, or oxidation. Thus, this equipment widely used in laboratories and other related industries.

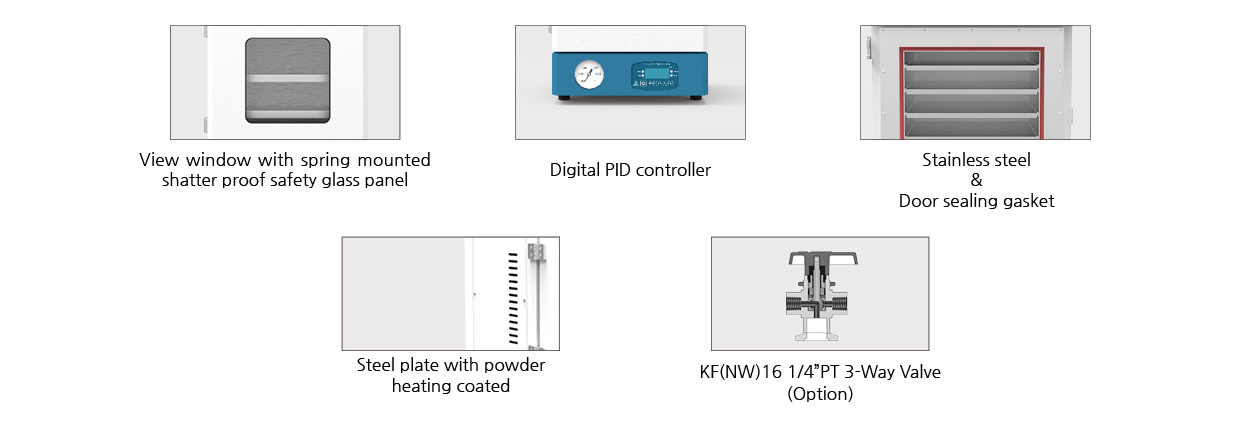

    • View window with spring mounted shatter proof safety glass panel
    • RS-485 or RS-232C interface
    • Digital PID controller
    • Stainless steel & Door sealing gasket
    • Steel plate with powder heating coated
    • Leveling feet / caster
    • Safety devices

    Vacuum drying oven is simple but essential across all industries including science, biology, biomedical, pharmaceutics, agriculture, food processing, food and oil extraction, chemistry, metallurgy and etc.




    Uniformity Sheet



    Water vapor pressure



    Selection guide



    Shelves' detail



    Programmable Controller (OPTIONAL)



    SH Scientific is 40 years old laboratory equipment manufacturer and we supply vacuum ovens, cold trap baths, vacuum pumps, industrial drying ovens, forced convection drying ovens, CBD isolate vacuum chambers, terpene traps, stirring mantles, recirculating chillers and heaters, incubators, climate chambers, bio safety cabinets, fume hoods, autoclaves, water baths, oil baths, ultrasonic cleaners, rotary evaporators, glass reactors, clean bench and so on.

    And we do OEM and custom products as well.

  • ModelSH-VDO-08NG
    Temp RangeAmbient +5℃ to 250℃ (Ambient +9℉ to 482℉)
    Time Range00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Counter Timer

    Vacuum Resistance

    0 to 76 cmHg (0 to 0.1MPa)
    Heating Type  Hot Air Jacketed
    Temp&Time controllerMicroprocess PID Membrane Touch Digital controller
     LED LampN/A
    Heater Capa800 W
    Dimension Internal
    (W×D×H)
    200×200×200mm
    7.87x7.87x7.87''
    Dimension External
    (W×D×H)
    385x315x555mm
    15.15x12.40x21.85''
    Weight29 kg
    Capa8 L
    Material InternalStainless Steel
    Material ExternalSteel Plate With Powder Heating Coated
    Materal Packing Silicon Rubber Packing
    View Window Tempered Glass
    Aluminium Shelves2 Supplied (2 Maximum)
    Electrical Requirements
    120V ,50/60Hz, 1Φ
    6.6 A
    Cat. No.VDO08NG120
    Electrical Requirements
    230V,50/60Hz, 1Φ
    3.5 A
    Cat. No.VDO08NG230
