SH Vacuum Drying Oven SH-VDO-30NG

Vacuum Drying Oven

SH-VDO-30NG

  • Separated vacuum port and vent port
  • Du-aluminium Shelves(Excellent heat conductivity)
  • Internal observation is possible through View Window
  • Excellent temperature uniformity and accuracy
  • Stainless Steel Internal Chamber with shelves
  • Safety assurance with C.E conformity
  • Specification

  • Inquiry

  • Vacuum Drying Oven-Feature

    A Vacuum Drying Oven is used for drying at low temperatures by lowering the pressure. In addition, this unit dries samples without causing residues, scaling, or oxidation. Thus, this equipment widely used in laboratories and other related industries.

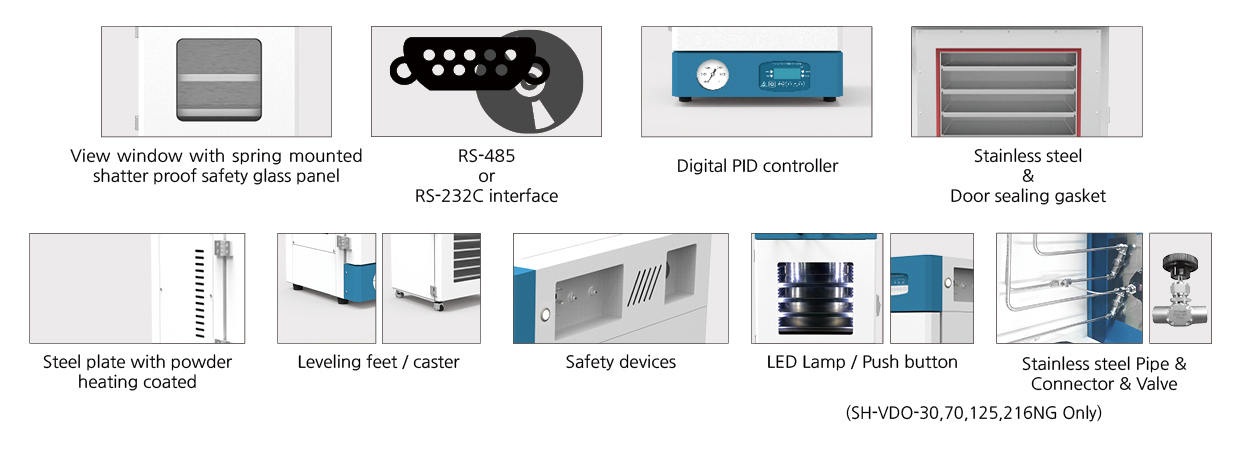

    • View window with spring mounted shatter proof safety glass panel
    • RS-485 or RS-232C interface
    • Digital PID controller
    • Stainless steel & Door sealing gasket
    • Steel plate with powder heating coated
    • Leveling feet / caster
    • Safety devices
    • LED Lamp & Switch

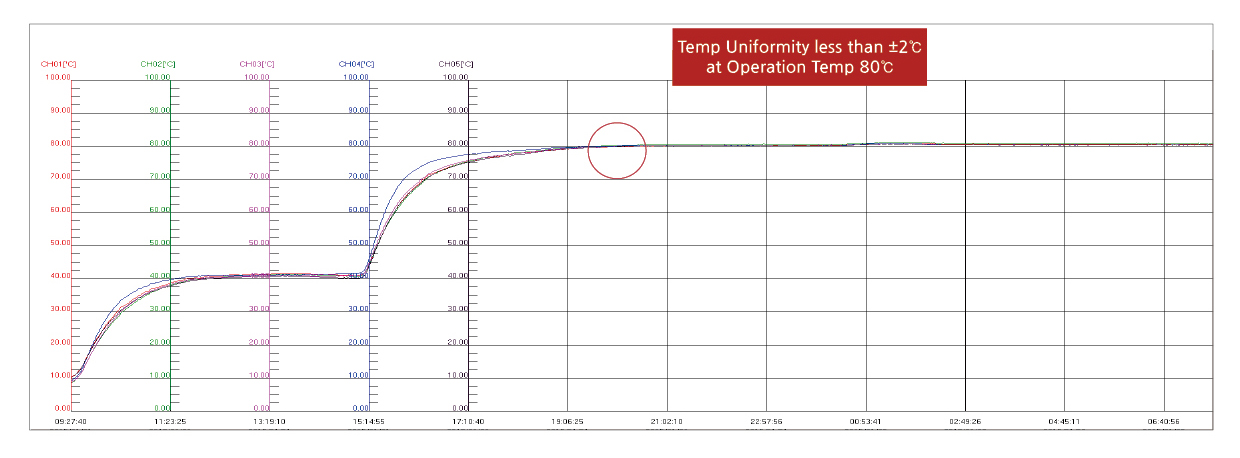

    Uniformity Sheet

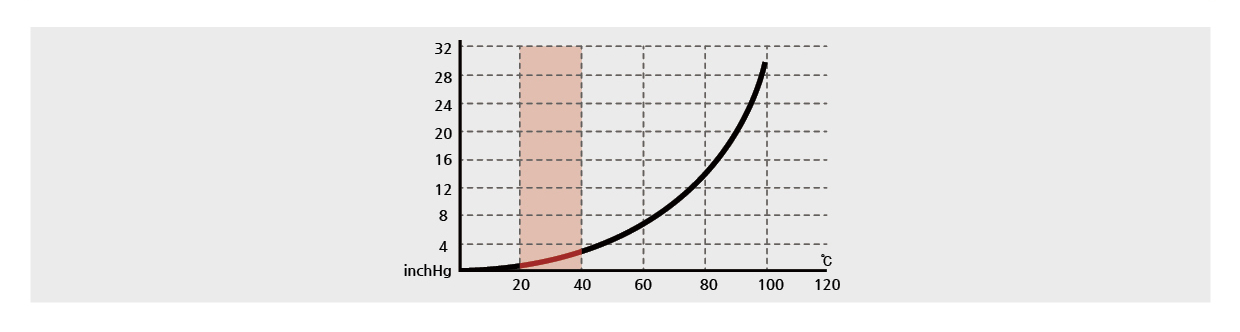

    Water vapor pressure

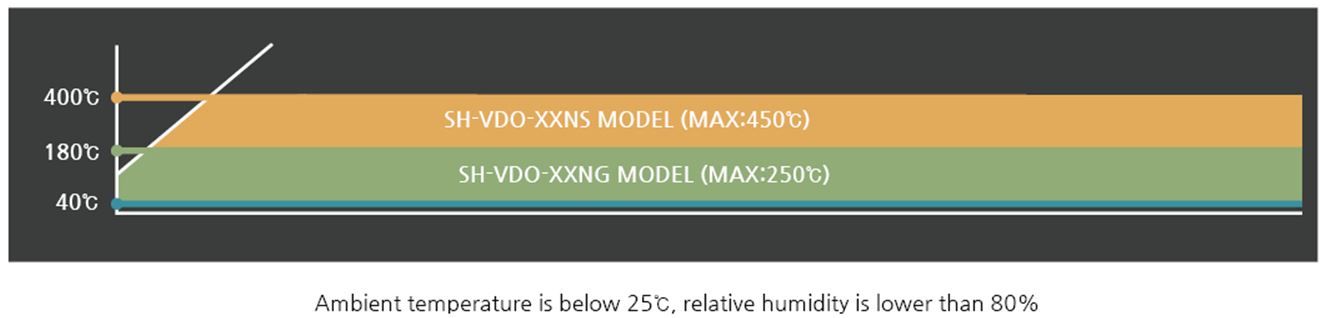

    Selection guide

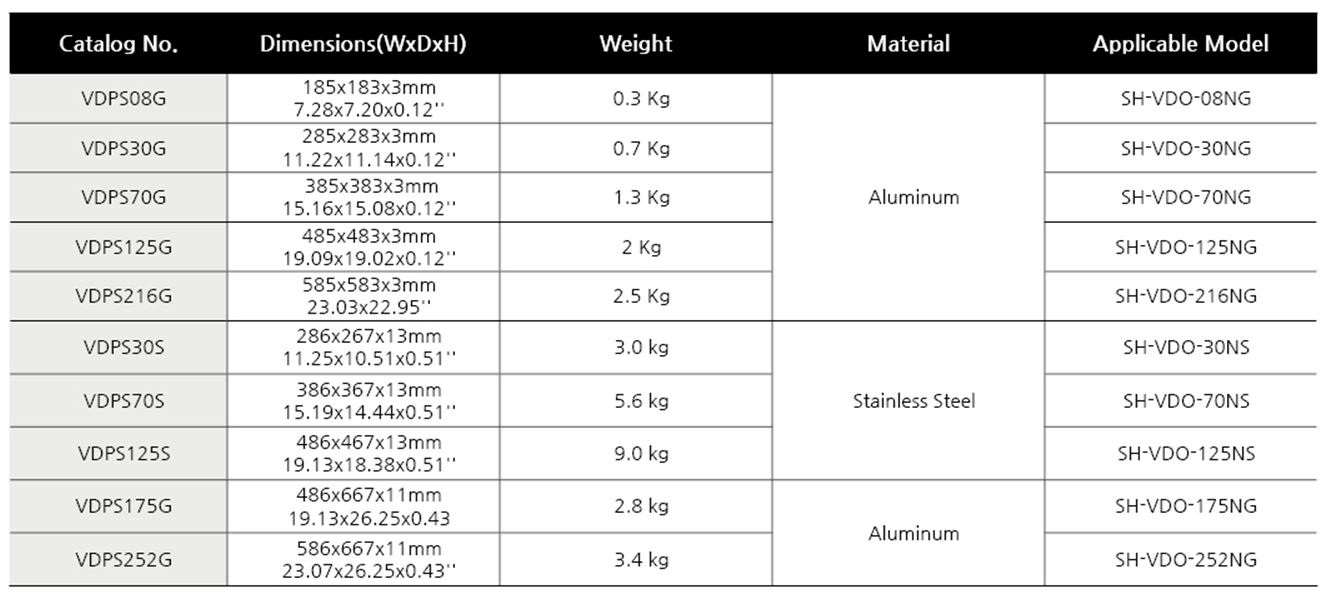

    Shelves' detail

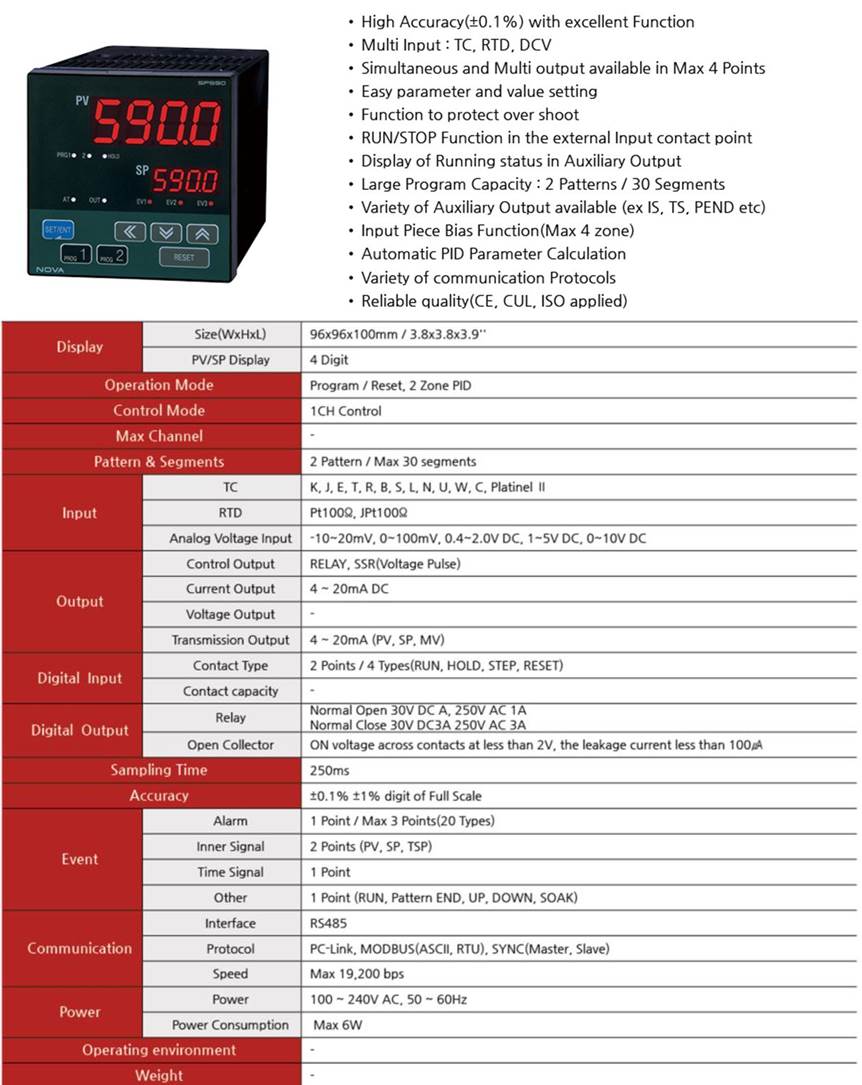

    Programmable Controller (OPTIONAL)



    SH Scientific is 40 years old laboratory equipment manufacturer and we supply vacuum ovens, cold trap baths, vacuum pumps, industrial drying ovens, forced convection drying ovens, CBD isolate vacuum chambers, terpene traps, stirring mantles, recirculating chillers and heaters, incubators, climate chambers, bio safety cabinets, fume hoods, autoclaves, water baths, oil baths, ultrasonic cleaners, rotary evaporators, glass reactors, clean bench and so on.

    And we do OEM and custom products as well.

  •

    Model SH-VDO-30NG
    Temp Range Ambient +5℃ to 250℃ (Ambient +9℉ to 482℉)
    Time Range 00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Counter Timer
    Vacuum Resistance 0 to 76 cmHg (0 to 0.1MPa)
    Heating Type Hot Air Jacketed
    Temp & Time controller Microprocess PID Membrane Touch Digital controller
     LED Lamp DC 24V, 1.2W, LED bar, Waterproof, Cool White
    Heater Capa 990 W
    Dimension Internal 300×300×300mm (W×D×H) 11.81x11.81x11.81"
    Dimension External 605x550x770mm (W×D×H) 23.81x21.65x30.31''
    Weight 69 kg
    Capa 27 L
    Material Internal Stainless Steel
    Material External Steel Plate With Powder Heating Coated
    Materal Packing Silicon Rubber Packing
    View Window Tempered Glass
    Aluminium Shelves 2 Supplied (4 Maximum)
    Electrical Requirements 120V ,50/60Hz, 1Φ 8.3 A
    Cat. No. VDO30NG120
    Electrical Requirements 230V,50/60Hz, 1Φ 4.3 A
    Cat. No. VDO30NG230



  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
