SH Vacuum Drying Oven for Toxic Gas SH-VDO-70NC

Vacuum dryer(64L) Cold Trap(-20℃) Vacuum pump Moving table

Power cord Ambient + 5℃ ~ 150℃

Vacuum Oven for Solvent (Toxic Gas)

  • The chamber material of the vacuum oven is STS 316, and the sealing gasket is Viton, making it a structure resistant to organic solvents.
  • 2-step fire prevention structure
    - 1. Blocking the source of fire inside the chamber by using the hot air jacket heating method
    - 2. Fire inside the chamber: When pressure rises, the door release function is activated to relieve pressure and prevent explosion
  • Vacuum Port and Vacuum Release Port are configured separately
  • Excellent temperature precision and distribution
  • Recommended operating temperature: 150 degrees or less
  • Shelves can be installed up to 4 levels (including 2 basic shelves)
  • LED lamps are installed in the view windows to enable observation of the inside of the chamber.
  • Click below for economical (discounted price) package products
  • Vacuum Dryer for Organic Solvents 70L Package + Build in Glass Condenser - Lab.com (silhumsil.com)
  • 70L Vacuum Dryer Package for Organic Solvents VDO-PK-C2 - Lab.com (silhumsil.com)
  • Specification

  • Inquiry

  • Option.

    1. Digital vacuum meter: Clamp-mounted Bullseye
    2. sample drying (using vacuum value) can be confirmed
    3. with easy detachment (KF25 standard) Programmable vapor pressure (vacuum) controller: Control solvent evaporation temperature using vacuum level
    Package Model VDO-PK-C2
    Vacuum Dry Oven SH-VDO-70NC
    Cold Trap SH-WB-5GDR(-20)
    Vacuum Pump SH-CV20
    Oil Mist Trap VOT-4080
    Dimension (WxDxH) 1053x670x1652mm
    41.46x26.38x65.04"




    Model Pump Speed Model Temp Range
    SH-CV20 167L/min SH-WB-5GDR(-20) Ambient -40℃ ~ ambient
    (-40℉ ~ ambient) (Low limit -20℃)
    Ultimate Pressure 5x10-1 Pa (3.7 x 10-3 Torr) SH-WB-5GDR(-40) -40℃(-40℉) ~ -20℃(-4℉)
    SH-WB-5GDR(-80) -80℃ (-112℉) ~ -60℃ (-76℉)










    Vacuum Dryer 64L
    Vacuum Drying Oven




    Product Name Vacuum Drying Oven 64L
    Model SH-VDO-70NC
    Temp Range Ambient +5℃ to 180℃ (Ambient + 9℉ to 356℉)
    Time Range 00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Counter Timer
    Vacuum Resistance 0 to 76 cmHg (0 to 0.1MPa)
    Heating Type Hot Air Jacketed
    Temp & Time Controller Microprocess PID Membrane Touch Digital controller
    LED Lamp DC 24V, 1.2W, LED bar, Waterproof, Cool White
    Heater Capacity 1350 W
    Dimension Internal (WxDxH) 400×400×400mm
    15.75x15.75x15.75''
    Dimension External (WxDxH) 705×620×870mm
    27.75x24.80x34.25''
    Weight 100 Kg
    Capa 64 L
    Material Internal SUS 316
    Material External Steel Plate With Powder Heating Coated
    Material Packing Viton Packing
    View Window Tempered Glass
    Shelves 3 Supplied (5 Maximum) (SUS 316)
    Electrical Requirements 120V ,50/60Hz, 1Φ - 11.3 A
    Cat. No. VDO70NC120
    Electrical Requirements 230V, 50/60Hz, 1Φ - 6 A
    Cat. No. VDO70NC230

    • Standard Accessory




    • Option

    1. Programmable Controller
    2. RS-485 interface
    3. RS-232C interface
    4. Digital Vacuum Meter(Bullseye)
    5. Gas connection service

    • Safety Device

    1. High temp limit controller
    2. Automatic reset function incoming power cut
    3. Buzzer on when set Time arrived
    4. Electric leakage circuit breaker

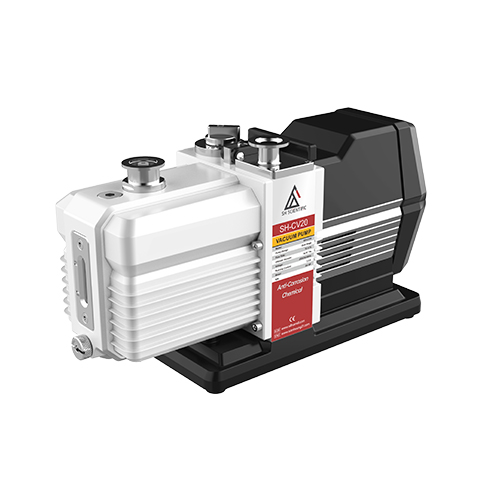

    Chemical vacuum pump for organic solvents
    Anti-Corrosion Chemical Vacuum Pump

    This is a high-performance chemical vacuum pump for organic solvents. It boasts stability and strong durability with a magnetic drive. It has an automatic anti-sucking back valve and a two-stage gas ballast valve function to ensure the best reliability.

    • A two-stage adjustable gas ballast valve allows condensable vapors to escape from the pump.
    • Oil back-suction protection function prevents the vacuum system from being contaminated with oil and makes it easy to restart the pump after it has stopped running.
    • Stable pump operation possible with forced oil circulation system and oil supply structure inside the oil pump
    • Excellent compatibility with general vacuum oil
    • Uses the same ultra-low noise DC motor as the VDC Series
    • Used for vacuum pumping of organic solvents such as toluene, acetone, and hexane / Not for use in strong acids and strong alkalis




    Product Name Anti-Corrosion Chemical Vacuum Pump for Organic Solvents
    Model SH-CV20
    Pumping Speed(50/60Hz) 167L/min
    Ultimate Total Pressure without gas ballast 5x10-1 Pa (3.7 x 10-3 Torr)
    Ultimate Total Pressure with gas ballast 3 Pa (2.2 x 10-2 Torr)
    Power Supply Single Phase
    Power Rating 3/4 HP
    Inlet and Exhaust Port KF25
    Oil Capacity 0.75 L
    Motor Speed (50/60Hz) 1850 rpm
    Ambient Temperature 5~40℃
    Noise ≤52dB
    Weight 15 kg

    • Option




    1. Oil Mist Trap with Filter
    2. VOT-4080




    1. Filter for Oil Mist Trap
    2. VOT-4080

    Flow Rate Characteristic




    Dimension

    Dimensions
    Model A B C D E F G H I
    SH-CV20 414 152 235 119 113.5 88 274 45.5 10

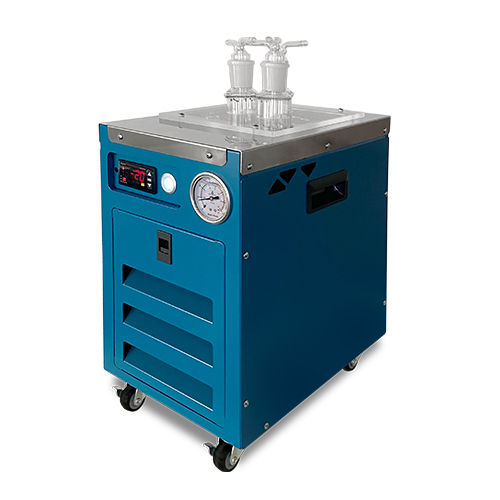

    Low temperature freeze trap
    Cold Trap Bath (Optional)

    • -20℃ model
    • Equipped with Digital Temp Controller
    • 3ea of ​​upper open type glass traps are installed as standard
    • No antifreeze leakage due to Seamless Bath
    • Equipped with a transparent cover for easy internal observation




    Product Name Cold Trap Bath -20℃
    Model SH-WB-5GDR
    Order Number SH-WB-5GDR(-20)
    Temp Controller Microprocessor digital controller
    Temp Control Range Ambient -40℃ ~ ambient (-40℉ ~ ambient) (Low limit -20℃)
    Dimension Internal (W×D×H) 200x200x130mm / 7.87x7.87x5.12"
    Dimension External (W×D×H) 283x400x455mm / 11.14x15.75x17.91''
    Weight 26.5kg
    Material Internal Stainless Steel
    Material External Steel Plate With Powder Heating Coated
    Trap Openable glass trap×3EA
    Noise (dB) 53
    Power 230V, 60Hz, 1Φ
    Cat. No. WB5GDR-20230-60

    • Safety Device

    1. - Automatic reset function incoming power cut
    2. - Electric leakage circuit breaker

    • Option

    1. - Stainless steel trap (including Acryal cover)




    Digital Vacuum Meter(Bullseye)

    \
    • Convenient to use as a portable device, and can operate continuously for 70 hours using AA batteries (4EA)
    • Power connection via micro USB port is possible
    • It can be freely installed on the case surface using the rear magnetic plate and can also be placed on a stand.
    • Accurate vacuum readings with Agilent 536 sensor pre-calibrated to NIST standards
    • Display vacuum measurement values ​​as text or easy-to-recognize graphs (0.001 to 800 Torr)
    • 12 measurement units can be displayed (Torr, mbar, bar, kPa, inches of Hg, mm Hg, millitorr, microns, inches of water, PSI, Pa)




    Bullseye
    Range 0.001 Torr - 800 Torr
    Power AA x 4 Batteries
    Sensor Agilent 536 Sensor
    Accuracy ± 0.002 Torr or 20%
    ± 10%
    ± 25%
    Units Torr, millitorr, microns, mbar, bar, kPa, Pa, mm, mm of Hg, inches of Hg, inches of water, PSIA
    Mount Portable Handheld
    Display LCD
    Certifications CE, RoHS2

    • Standard Accessory

    1. - Bullseye Gauge & Agilent536 Vacuum Sensor 1SET
    2. - KF(NW)25 Clamp 1EA
    3. - KF(NW)25 Centr Ring & Viton Ring 1EA
    4. - USB C type charger 1EA




    • Option

    1. - KF(NW)25 Hose Barb 10mm
    2. - KF(NW)16, 25, 40 Clamp
    3. - KF(NW)16, 25, 40 Centr Ring & Viton Ring
    4. - KF(NW)25 T Connector
    5. - KF(NW)25 L Connector
    6. - KF(NW)25 Ball Valve
    7. - KF(NW)25 Ball Valve
    8. - KF(NW)25 Blank
    9. - KF(NW)40*25 Reducer
    10. - KF(NW)25*16 Reducer
    11. - KF(NW)25&1/4"PT Needle Valve
    12. - KF(NW)16&1/4"PT 3-Way Valve
    13. - Silicon Vacuum Hose 8-15mm(L)5m
    14. - SUS Bellows Hose 1m

    Vacuum Controller

    • Vacuum Controller for precise vacuum control (fractional distillation, anti-bumping, etc.)
    • Made from materials with excellent chemical resistance (SUS 316, PTFE) for superior durability
    • Three types of driving selection function: Full, Set, and Display
    • Precise control with a tolerance of ±2 torr
    • Wide control range from 2 to 775 torr
    • Compatible with all SH vacuum pumps, including Diaphragm, Oil Rotary, and Dry Scroll
    • Infinite program operation (Ramp, Hold, Set Point) possible using software (USB cable and software provided)







    Product Name Vacuum Controller Vacuum Controller
    Model SH-VPC
    Vacuum Reference Absolute
    Sensor SEN-775i-NPT-OEM
    Resolution ± 0.1 Torr
    Units Torr, mbar
    Accuracy ±2.66 mbar; ±2 Torr
    Range 1~1013 mbar; 1~775 Torr
    Control band ±2.66 mbar; ±2 Torr
    Mount Desktop or laboratory pole mount
    Display 0.56 inch White LED for Pressure, 0.36 inch Blue LED for set point
    Product Dimensions (WxDxH) 114.3x158.75x85.725mm / 4.5"x 6.25"x 3.375"
    Power 220 Volt standard wall receptacle
    Compliance CE and RoHS compliant
    Wetted Materials 316 SS, chemically resistant rubber, PTFE
    Effective Orifice 0.150 in
    Connectivity USB
    Vacuum Interface 3/8" ID hose barbs, 1/4" NPT F
    LED Heights .56", .35"

    • Standard Accessory

    1. Vacuum Controller 1EA
    2. USB Cable 1EA
    3. Power Adaptor 1EA
    4. Bracket 1EA




    Vacuum Accessories




  • Product Name Vacuum Drying Oven 64L
    Model SH-VDO-70NC
    Temp Range Ambient +5℃ to 180℃ (Ambient + 9℉ to 356℉)
    Time Range 00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Counter Timer
    Vacuum Resistance 0 to 76 cmHg (0 to 0.1MPa)
    Heating Type Hot Air Jacketed
    Temp & Time Controller Microprocess PID Membrane Touch Digital controller
    LED Lamp DC 24V, 1.2W, LED bar, Waterproof, Cool White
    Heater Capacity 1350 W
    Dimension Internal (WxDxH) 400×400×400mm
    15.75x15.75x15.75''
    Dimension External (WxDxH) 705×620×870mm
    27.75x24.80x34.25''
    Weight 100 Kg
    Capa 64 L
    Material Internal SUS 316
    Material External Steel Plate With Powder Heating Coated
    Material Packing Viton Packing
    View Window Tempered Glass
    Shelves 3 Supplied (5 Maximum) (SUS 316)
    Electrical Requirements 120V ,50/60Hz, 1Φ - 11.3 A
    Cat. No. VDO70NC120
    Electrical Requirements 230V, 50/60Hz, 1Φ - 6 A
    Cat. No. VDO70NC230
