SH Vacuum Drying Oven for Toxic Gas SH-VDO-30NC

27 (Liter)

Power cord Ambient + 5℃ ~ 150℃

Vacuum Oven for Solvent (Toxic Gas)

  • The chamber material of the vacuum oven is STS 316, and the sealing gasket is Viton, making it a structure resistant to organic solvents.
  • 2-step fire prevention structure
    - 1. Blocking the source of fire inside the chamber by using the hot air jacket heating method
    - 2. Fire inside the chamber: When pressure rises, the door release function is activated to relieve pressure and prevent explosion
  • Vacuum Port and Vacuum Release Port are configured separately
  • Excellent temperature precision and distribution
  • Recommended operating temperature: 150 degrees or less
  • Shelves can be installed up to 4 levels (including 2 basic shelves)
  • LED lamps are installed in the view windows to enable observation of the inside of the chamber.
  • Click below for economical (discounted price) package products
  • Vacuum Dryer for Organic Solvents 27L Package + Build in Glass Condenser - Lab.com (silhumsil.com)
  • 27L Vacuum Dryer Package for Organic Solvents VDO-PK-C1 - Lab.com (silhumsil.com)
  • Specification

  • Inquiry

  • Advantages of selecting Option

    1. Digital Vacuum meter (Bullseye)
    2. • Clamp-mounted (KF25 standard) for easy removal, allows confirmation of sample drying (using vacuum value)
    1. Vapor Pressure Controller (VPC)
    2. • Programmable vapor pressure (vacuum) control device, solvent evaporation temperature control according to vacuum setting




    • Standard Accessory




    • Option

    1. Programmable Controller
    2. RS-485 interface
    3. RS-232C interface
    4. Digital Vacuum Meter(Bullseye)
    5. Vacuum Pressure Controller (VPC)

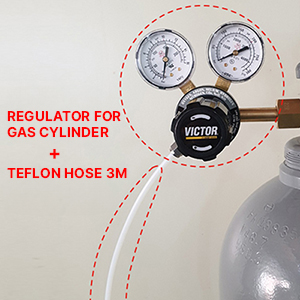

    6. Gas connection service



    • Safety Device

    1. High temp limit controller
    2. Automatic reset function incoming power cut
    3. Buzzer on when set Time arrived
    4. Electric leakage circuit breaker










    Vacuum Drying Oven-Feature

    A vacuum dryer is a device that dries at a low heating temperature in a vacuum state. In particular, it can dry samples without causing residue, peeling, or oxidation in the sample during the vacuum drying process, so it is widely used in laboratories, research centers, and related industries.

    Uniformity sheet




    * The above temperature distribution is the temperature distribution of the shelf and may differ from the temperature displayed on the temperature controller.

    Feature




    Water vapor pressure




    SH-VACUUM OVEN

      Models offered:
    • 250℃ General Vacuum Drying Oven
    • 150℃ Toxic Gas Vacuum Drying Oven
    • 400℃ Vacuum Drying Oven
    • Vacuum Drying Oven Package
    • Vacuum Oven for Evaporation (Large Capa)
    • Vacuum Oven for Evaporation Package
    • Vacuum Product Accessories

    Selection guide




    Shelves' detail

    Catalog No. Dimensions (WxDxH) Weight Material Applicable Model
    VDPS08 185x183x3mm
    7.28x7.20x0.12"
    0.3 Kg Aluminum SH-VDO-08NG
    VDPS30 285x283x3mm
    11.22x11.14x0.12"
    0.7 Kg SH-VDO-30NG
    VDPS70 385x383x3mm
    15.16x15.08x0.12"
    1.3 Kg SH-VDO-70NG
    VDPS125 485x483x3mm
    19.09x19.02x0.12"
    2 Kg SH-VDO-125NG
    VDPS175 486x667x11mm
    19.13x26.25x0.43"
    2.8 Kg SH-VDO-175NG
    VDPS216 585x583x3mm
    23.03x22.95"
    2.5 Kg SH-VDO-216NG
    VDPS252 586x667x11mm
    23.07x26.25x0.43"
    3.4 Kg SH-VDO-252NG
    VDPSC30 285x283x3mm
    11.22x11.14x0.12"
    2.0 Kg Stainless Steel 316 SH-VDO-30NC
    VDPSC70 385x383x3mm
    15.16x15.08x0.12"
    3.8 Kg SH-VDO-70NC
    VDPSC125 485x483x3mm
    19.09x19.02x0.12"
    5.8 Kg SH-VDO-125NC
    VDPS30S with heater 286x267x13mm
    11.25x10.51x0.51"
    3.0 Kg Stainless Steel 304 SH-VDO-30NS
    VDPS70S with heater 386x367x13mm
    15.19x14.4x0.51"
    5.6 Kg SH-VDO-70NS
    VDPS125S with heater 486x467x13mm
    19.13x18.38x0.51"
    9.0 Kg SH-VDO-125NS

    Digital Vacuum Meter(Bullseye)

    • Convenient to use as a portable device, and can operate continuously for 70 hours using AA batteries (4EA)
    • Power connection via micro USB port is possible
    • It can be freely installed on the case surface using the rear magnetic plate and can also be placed on a stand.
    • Accurate vacuum readings with Agilent 536 sensor pre-calibrated to NIST standards
    • Display vacuum measurement values ​​as text or easy-to-recognize graphs (0.001 to 800 Torr)
    • 12 measurement units can be displayed (Torr, mbar, bar, kPa, inches of Hg, mm Hg, millitorr, microns, inches of water, PSI, Pa)




    Bullseye
    Range 0.001 Torr - 800 Torr
    Power AA x 4 Batteries
    Sensor Agilent 536 Sensor
    Accuracy 0.001~0.99 Torr: ± 0.002 Torr or 20%
    0.1~2 Torr: ± 10%
    2~6 Torr: ± 25%
    Units Torr, millitorr, microns, mbar, bar, kPa, Pa, mm, mm of Hg, inches of Hg, inches of water, PSIA
    Mount Portable Handheld
    Display LCD
    Certifications CE, RoHS2

    • Standard Accessory

    1. Bullseye Gauge & Agilent536 Vacuum Sensor 1SET
    2. KF(NW)25 Clamp 1EA
    3. KF(NW)25 Centr Ring & Viton Ring 1EA
    4. USB C type charger 1EA




    • Option

    1. - KF(NW)25 Hose Barb 10mm
    2. - KF(NW)16, 25, 40 Clamp
    3. - KF(NW)16, 25, 40 Centr Ring & Viton Ring
    4. - KF(NW)25 T Connector
    5. - KF(NW)25 L Connector
    6. - KF(NW)25 Ball Valve
    7. - KF(NW)25 Blank
    8. - KF(NW)40*25 Reducer
    9. - KF(NW)25*16 Reducer
    10. - KF(NW)25&1/4"PT Needle Valve
    11. - KF(NW)16&1/4"PT 3-Way Valve
    12. - Silicon Vacuum Hose 8-15mm(L)5m
    13. - SUS Bellows Hose 1m

    Vacuum Controller

    • Vacuum Controller to choose when precise vacuum control is required (fractional distillation, anti-bumping, etc.)
    • Made of material with excellent chemical resistance (SUS 316, PTFE) for excellent durability
    • Precise control of ±2 torr
    • 3 types (Full, Set, Display) driving selection function
    • Wide control range from 2 to 775 torr
    • Compatible with all SH vacuum pumps including Diaphragm, Oil Rotary, and Dry Scroll.
    • Infinite program operation (Ramp, Hold, Set Point) possible using software (USB Cable, Software provided)







    Product Name Vacuum Controller Vacuum Controller
    Model SH-VPC
    Vacuum Reference Absolute
    Sensor SEN-775i-NPT-OEM
    Resolution ± 0.1 Torr
    Units Torr, mbar
    Accuracy ±2.66 mbar; ±2 Torr
    Range 1~1013 mbar; 1~775 Torr
    Control band ±2.66 mbar; ±2 Torr
    Mount Desktop or laboratory pole mount
    Display 0.56 inch White LED for Pressure, 0.36 inch Blue LED for set point
    Product Dimensions (WxDxH) 114.3x158.75x85.725mm / 4.5”x 6.25”x 3.375”
    Power 220 Volt standard wall receptacle
    Compliance CE and ROHS compliant
    Wetted Materials 316 SS, chemically resistant rubber, PTFE
    Effective Orifice 0.150 in
    Connectivity USB
    Vacuum Interface 3/8” ID hose barbs, 1/4” NPT F
    LED Heights .56”
    .35”

    Standard Accessory

    1. - Vacuum Controller 1EA
    2. - USB Cable 1EA
    3. - Power Adaptor 1EA
    4. - Bracket 1EA




    Vacuum Accessories




  • Product Name Vacuum Drying Oven 27L
    Model SH-VDO-30NC
    Temp Range Ambient +5℃ to 150℃ (Ambient + 9℉ to 302℉)
    Time Range 00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Counter Timer
    Vacuum Resistance 0 to 76 cmHg (0 to 0.1MPa)
    Heating Type Hot Air Jacketed
    Temp & Time Controller Microprocess PID Membrane Touch Digital Controller
    LED Lamp DC 24V, 1.2W, LED bar, Waterproof, Cool White
    Heater Capacity 990 W
    Dimension Internal (W×D×H) 300×300×300mm (11.81x11.81x11.81'')
    Dimension External (W×D×H) 605×550×770mm (23.81x21.65x30.31'')
    Weight 69 Kg
    Capacity 27 L
    Material Internal STS 316
    Material External Steel Plate With Powder Heating Coated
    Material Packing Viton Packing
    View Window Tempered Glass
    Shelves 2 Supplied (4 Maximum) (STS 316)
    Electrical Requirements (120V, 50/60Hz, 1Φ) 8.3 A (Cat. No.: VDO30NC120)
    Cat. No. VDO30NC120
    Electrical Requirements (230V, 50/60Hz, 1Φ) 4.3 A
    Cat. No. VDO30NC230
