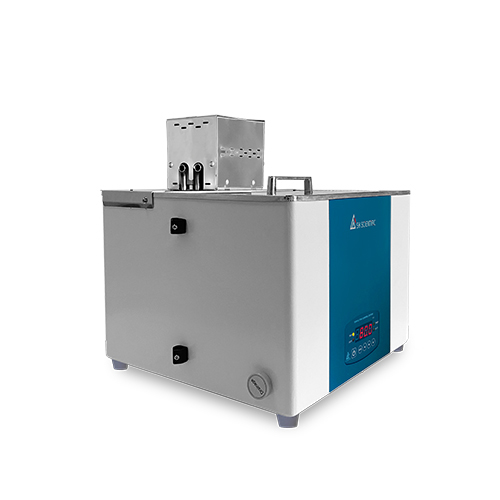

Circulating Water Bath SH-WB-11CDN

Ambient +5℃~99℃

10.8(Liter)

펌프순환항온수조 10.8L
  • Specification

  • Inquiry

    • • Accessory
    • -Bath Lid
      • Option
    • -RS-485 interface
    • -RS-232C interface
    • -1/2" Pt Female connector
      • Safety Device
    • -Automatic reset function incoming power cut
    • -Buzzer on when set time arrived
    • -Over temperature alarm
  • Model SH-WB-11CDN
    Temp Range Ambient +5℃ to 99℃ (Ambient + 9℉ to 210℉) (Only Heating)
    Temp Controller Digital PID Controller
    Time Range 00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Display
    Capa 10.8 L
    Recirculating
    Pump
    Max flow 16 L/min (tested with distilled water at 20℃)
    Max Head
    3.5 meter (tested with distilled water at 20℃)
    Max pressure 5.1 psig (tested with distilled water at 20℃)

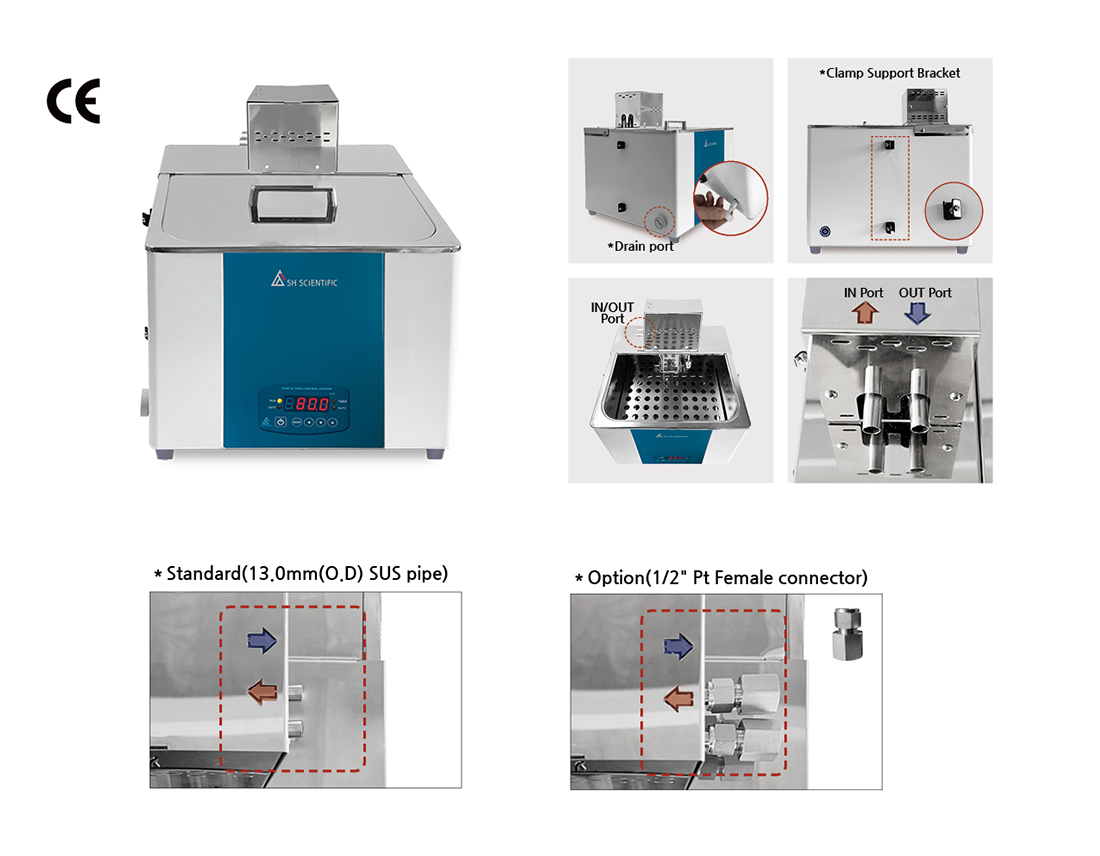

    In/out port 13.0 mm (O.D) / Stainless Steel pipe or 1/2" Pt Female connector (*option)
    Heater Capa 800 W
    Dimension Internal
    (W×D×H )
    300x300x140mm
    11.81x11.81x5.51''
    Dimension External
    (W×D×H )
    345x345x391mm
    13.58x13.58x15.39''
    Top Open
    (W×D)
    300x202mm
    11.81x7.95''
    Net weight 10 Kg
    Material Internal Stainless Steel
    Material External Steel Plate With Powder Heating Coated
    Electrical Requirements
    230V,50/60Hz, 1Φ
    3.5 A
    Cat. No.50 (60Hz) WB11CDN230-50 (WB11CDN230-60)
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
