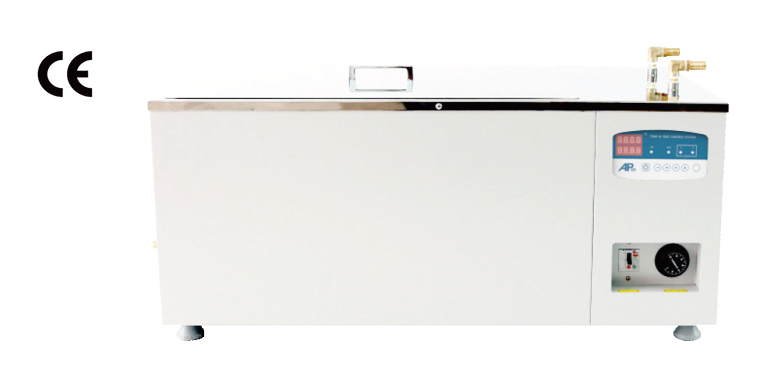

Circulating Water Bath SH-WB-48CDN

Ambient +5℃~99℃

48(Liter)

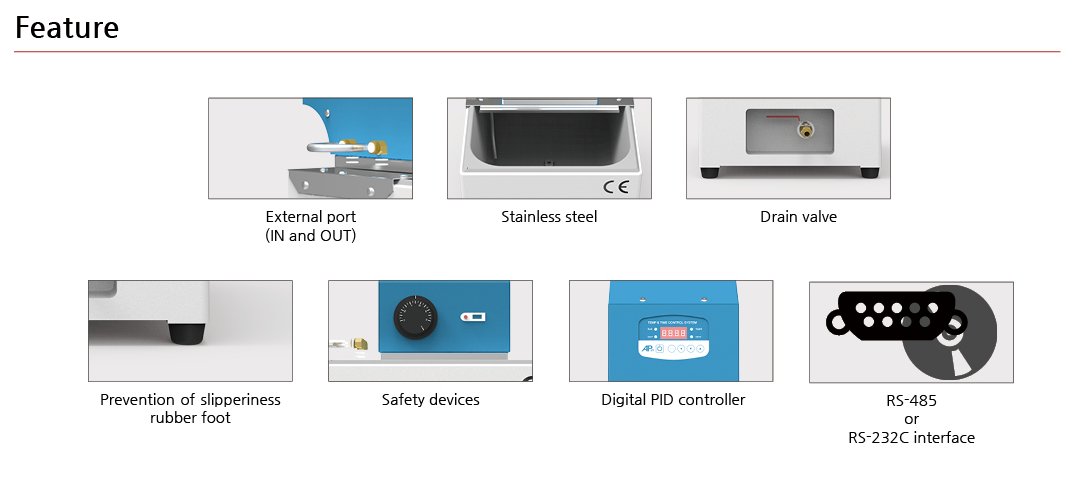

- Excellent temperature accuracy by Digital Control

- Circulation Motor allows excellent temperature distribution

- External circulation port (possible to connect with an external device)

- Stainless Steel internal bath

- Safety assurance with C.E. conformity

  • Specification

  • Inquiry

  • • Accessory - Bath Lid


    • Option
    -RS-485 interface

    -RS-232C interface

    • Safety Device

    - Automatic reset function incoming power cut
    - Buzzer on when set time arrived
    - Electric leakage circuit breaker

    - Over temperature protection

    Circulating Water Bath contains both a circulation pump and a series of input-output nozzles in order to supply uniform water
    temperature to a specified storage tank. With its powerful circulation and the distribution degree of constant temperature in the bath is sufficient.

    Also, a circulation with an external device such as an evaporator is made possible through this model.

  • Model

    SH-WB-48CDN
    Temp RangeAmbient +5℃ to 99℃ (Ambient + 9℉ to 210℉)
    Temp Controller
    Digital PID Controller
     Time Range 00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Display
    Capa48 L
    Heater Capa4000 W

    Dimension Internal

    (W×D×H )

    600x400x200mm

    23.62x15.75x7.87''

    Dimension External

    (W×D×H )

    1005x485x440mm

    39.56x19.09x17.32''

     Top Open

    (WxD)

    600x400mm

    23.62x15.75''

    Net Weight33 Kg
    Material InternalStainless Steel
    Material ExternalSteel Plate with Powder Heating Coated
     Electrical Requirements
    120v ,50/60Hz, 1Φ

    33.3 A

    Cat No.50 (60Hz)

    WB48CDN120-50

    (WB48CDN120-60)

     Electrical Requirements
    230v ,50/60Hz, 1Φ

    17.4 A

    Cat No.50 (60Hz)

    WB48CDN230-50

    50(WB48CDN230-60)

  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
